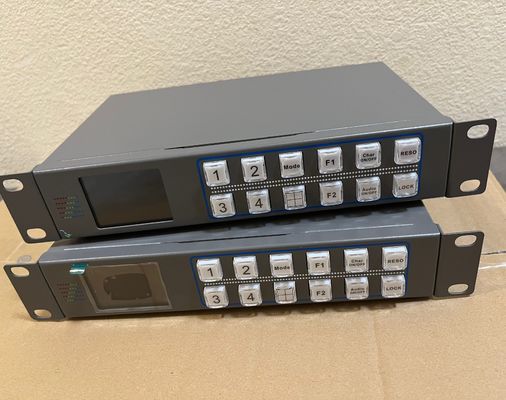

WL-MVP9104 the 4-ch 3G-SDI input 1-ch 3G-SDI output multi-viewer

WL-MVP9104 the 4-ch 3G-SDI input 1-ch 3G-SDI output multi-viewer
WL-MVP9104 the 4-ch 3G-SDI input 1-ch 3G-SDI output multi-viewer WL-MVP9104 the 4-ch 3G-SDI input 1-ch 3G-SDI output multi-viewer

Gambar besar :  WL-MVP9104 the 4-ch 3G-SDI input 1-ch 3G-SDI output multi-viewer

Detail produk:
Place of Origin: Mainland, China
Nama merek: VINCAN
Sertifikasi: CE ,FCC , RoHs
Model Number: WL-MVP9104
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 set
Harga: 100-1000.00USD/SET
Packaging Details: Stantard export package
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets one week
Kontak

WL-MVP9104 the 4-ch 3G-SDI input 1-ch 3G-SDI output multi-viewer

Deskripsi
Name: WL-MVP9104 the 4-ch 3G-SDI input 1-ch 3G-SDI output multi-viewer SDI input Rate: 143Mbps~2.97Gbps
Power supply: 100-240V/AC 50/60Hz Power Rating: 25W-150W, According to host type
Operating Temperature: 0℃~50℃ without condensation Working Humidity: 20%~70%RH

Product Introduction



Winlink SDI 4-Screen WL-MVP9104 is a professional-grade multi-picture multi- viewer,

which supports 4-CH SDI input, 4-CH SDI loop output, 2-CH SDI multi-screen output, and

1-CH HDMI multi-screen output. The device is configured through the keypad, and supports

single-screen full-screen, PIP, POP, and four-screen segmentation.

The device supports remote network upgrade and PC software control.



WL-MVP9104 the 4-ch 3G-SDI input 1-ch 3G-SDI output multi-viewer 0





Specification:



Name WL-MVP9104 SDI 4- Screen Multi-viewer















SDI Input

 Input Signal SDI HD serial digital video signal
Rate 143Mbps~2.97Gbps
Connector BNC complies with IEC169-8
Reflection loss >15dB 5MHz~3GHz
Signal amplitude 800mV±10%
Impedance 75Ω



Balance

 100m Belden 1694AHD
200m Belden 8281AHD

















SDI Output

 Output Signal HD-SDI HD serial digital video signal
Connector BNC complies with IEC169-8
Reflection loss >15dB 5MHz~3GHz
Signal amplitude 800mV±10%
Impedance 75Ω
Up/Downtime 0.6ns±100ps
DC offset 0V±0.5V
Clock recovery Auto output optional
Overshoot <5%
Jitter <0.2Ul







HDMI Output

 Output Signal Standard HDMI signal
Rate 270Mbps~2.97Gbps
Signal amplitude 800mV±10%(100R)
Impedance 100Ω











AUDIO

 Input 1 set of XLR balanced audio cannon input/1 channel analog audio input
Output 1 channel analog audio output
Response frequency 550-3.6KHz, < +/-3dB
THD < 3%
S/N > 50dB









Control Parameter

 Local control button (front panel)
Serial control RS232
Connection port RJ45 standard network interface (UDP/HTTP)
Control software WINDOWS (customizable IOS/Android)

Optional

components

 Central control keyboard















General Parameters

 Power supply 100-240V/AC 50/60Hz
Power Rating 25W-150W, According to host type
Size Half 1U (standard power supply)
Control Panel Yes
Weight 2.1KG

Operating

Temperature

 0℃~50℃ without condensation
Storage Temperature -20℃~75℃
Working Humidity 20%~70%RH
Storage Humidity 0%~90%RH, No condensation



WL-MVP9104 the 4-ch 3G-SDI input 1-ch 3G-SDI output multi-viewer
