Detail produk:
|
| Kepatuhan HDMI: | HDMI 2.0 | Kepatuhan HDCP: | HDCP 2.2 |
|---|---|---|---|
| Bandwidth video: | 18Gbps | Memasukkan: | 4096x2160@60Hz |
| Keluaran: | 3840X2160@30Hz | Amplitudo HDMI: | T.M.D.S +/- 0.4Vpp |
| Menyoroti: | 8x8 HDMI 2.0 Matrix Switcher,Mulus HDMI 2.0 Matrix Switcher,4K 60Hz Video Matrix Switcher |
||
2.Spesifikasi:
| Teknis | |
| Kepatuhan HDMI | HDMI2.0 |
| Kepatuhan HDCP | HDCP2.2 |
| Bandwidth | 18Gbps |
| Resolusi video | |
| Memasukkan | 800x600@60Hz,1024x768@60Hz, 1280x768@60Hz,1280x800@60Hz, 1280x1024 @ 60Hz, 1360x768 @ 60Hz, 1366x768@60Hz,1400x1050@60Hz, 1440x900 @ 60Hz, 1600x1200 @ 60Hz, 1680x1050@60Hz, 1920x1200@60Hz. 480p,576p,720p,1920x1080i,1920x1080p, 3840x2160@24Hz/25Hz/30Hz/50Hz/60Hz, 4096x2160@24Hz/25Hz/30Hz/50Hz/60Hz. |
| Keluaran | 1920x1080@60Hz, 3840x2160@30Hz, 3840x2160@60Hz, 1280x720@60Hz, 1024x768@60Hz, 1360x768@60Hz, 1600x1200@60Hz, 1920x1200@60Hz |
| Amplitudo HDMI | TMDS +/- 0.4Vpp |
| Impedansi diferensial | 100±15ohm |
| Perlindungan ESD | Model tubuh manusia: ±8kV (Pembuangan celah udara), ±4kV (Pembuangan kontak) |
| Kontrol RS232/Ethernet | |
| Baud rate dan protokol | Baud rate: 9600, bit data: 8, stop bit: 1, tidak ada pemeriksaan paritas |
| Ethernet | IE10.0+, HTML5 |
| Mekanis | |
| Perumahan | Kandang Logam |
| Warna | Hitam |
| Ukuran | 430mm (L) X 300mm (L) X 44mm (T) |
| Bobot | 5kg |
| Sumber Daya listrik | AC 110 - 240V |
| Konsumsi daya | 100W (Maks) |
| Suhu Operasional | 0 °C ~ 40 °C / 32 °F ~ 104 °F |
| Suhu Penyimpanan | "-20°C ~ 70°C / -4°F ~ 158°F |
| Kelembaban relatif | 10% ~ 50% RH (tanpa kondensasi) |

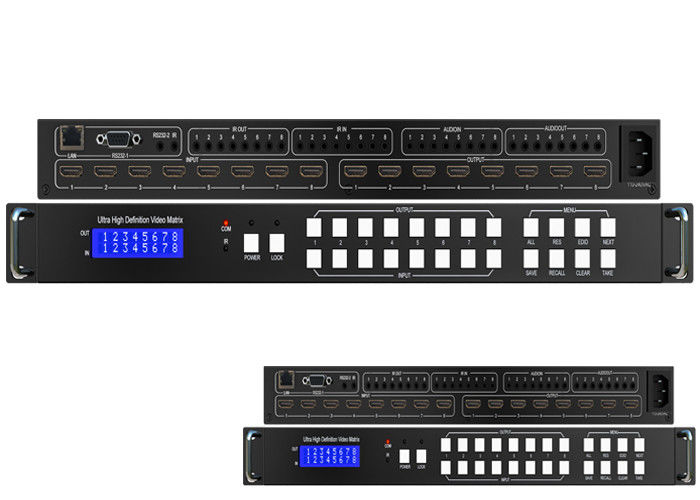

| Nama Produk | 18Gbps 8x8 Mulus IR Audio UHD HDMI2.0 Matrix Dengan 4K@60Hz 4:4:4 |
3.Menggunakan diagram aplikasi:
